Butterfly drop cable for outdoor overhead use

Butterfly drop cable for outdoor overhead use (GJYXCH/GJYXFCH)
Product Description:

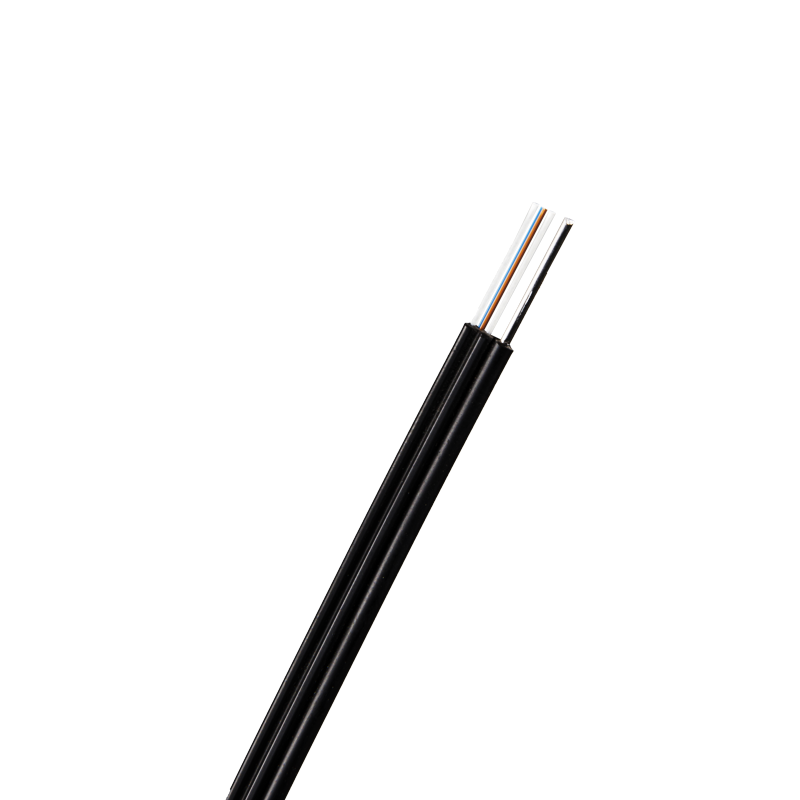

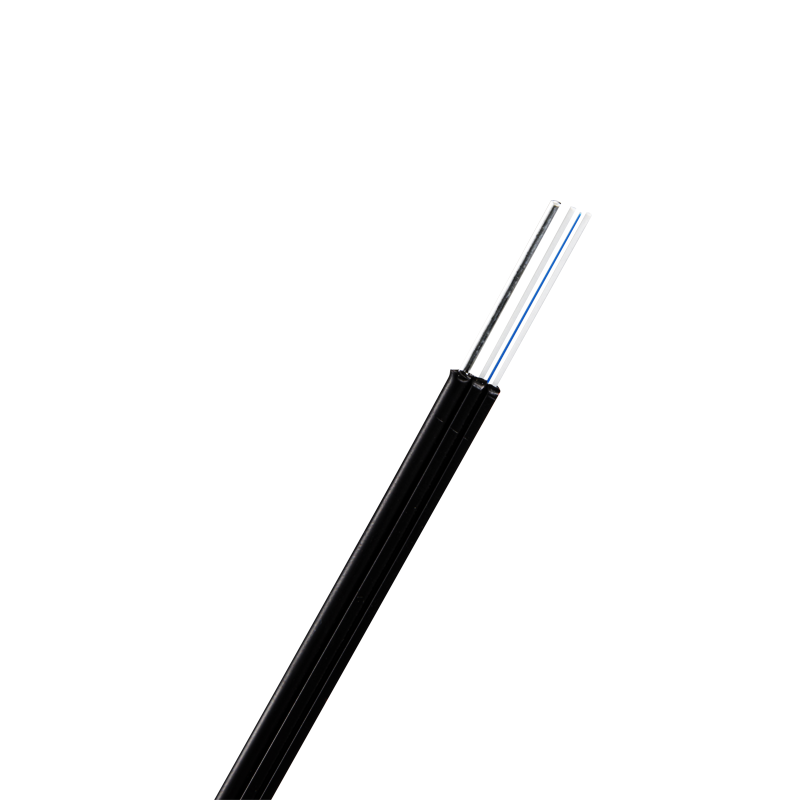

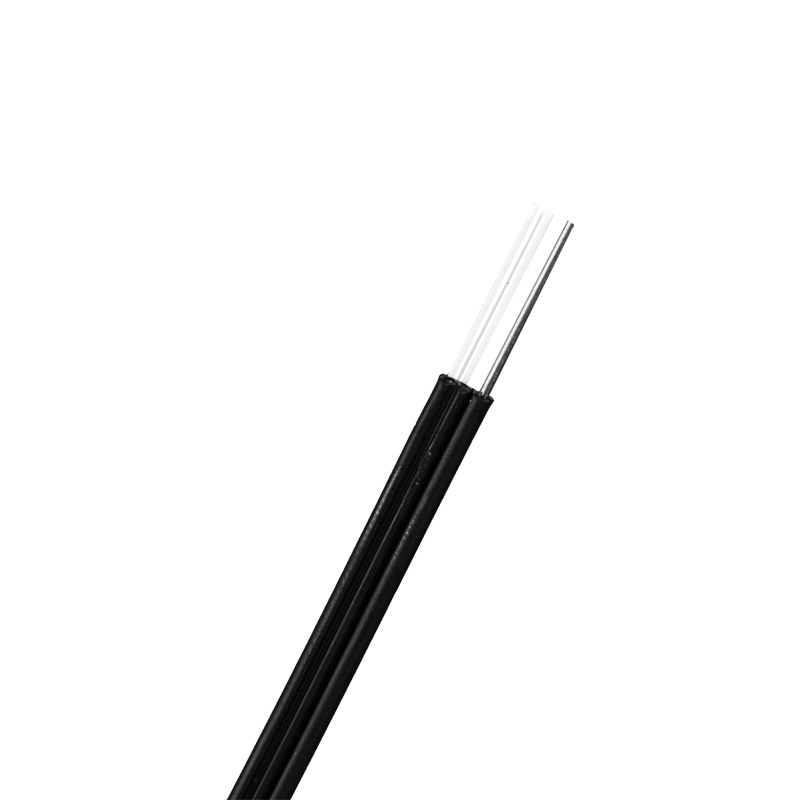

GJYXCHI (GJYXFCH) [Metal (or non-metal) reinforcement, LSZH sheath, self-supporting butterfly drop cable] The optical cable structure is to place the optical fiber (or optical fiber ribbon) in the middle of two parallel reinforcements, and at one end in parallel position Place a metal suspension wire and squeeze a layer of flame-retardant polyene hydroxy sheath (LSZH).
Executive standard:
YD/T 1997-2014 Butterfly Drop Optical Cable for Access Network

Features:
Optical cable has small outer diameter, light weight, and low construction cost;
Using cold connection technology, fast connection speed;
The optical cable has high resistance to flattening and tension, and the self-supporting structure can meet the flying span of less than 50 meters;
Using glass reinforced fiber rod (G-FRP), aramid fiber reinforced rod (K-FRP) or thin steel wire as reinforcement, the optical cable is soft and has good bending performance, ensuring that the bending radius of the optical cable meets the requirements;
Use LSZH or PVC flame-retardant materials to meet the flame-retardant and environmental protection performance requirements of optical cables when used indoors;
The optical fiber adopts the bending loss insensitive optical fiber that meets the requirements of ITU-TG.657A&G.657B standard, and the minimum bending radius is 15mm or even smaller;
The self-supporting leather cable suspension wire adopts high-carbon steel wire or steel strand, which has superior tensile performance.
