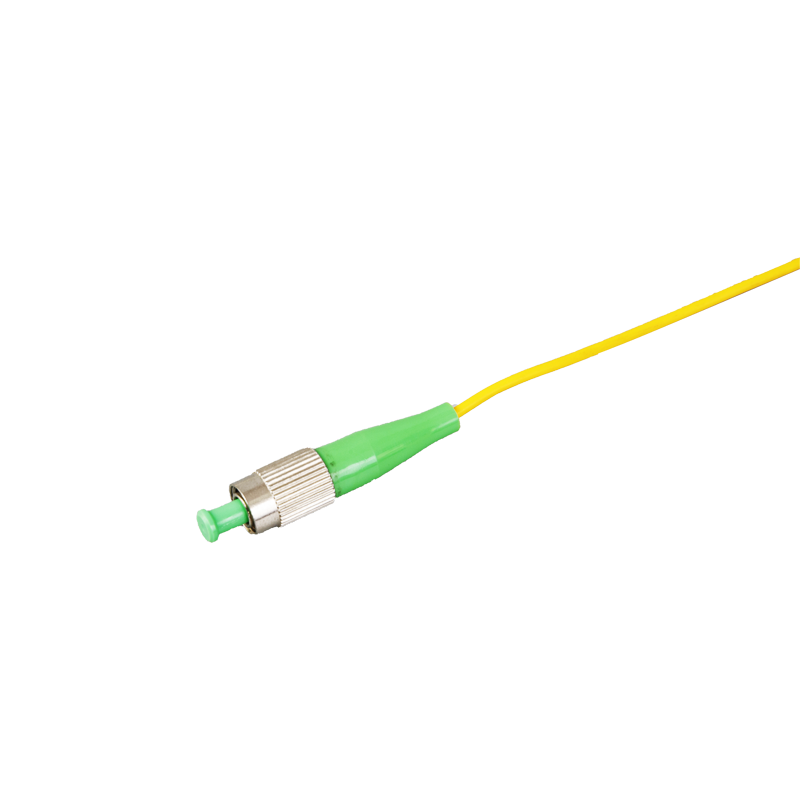

FC-APC connector

Home / Procuct / Fiber Jumper / FC-APC connector
Product Category

FC-APC connector

Optical fiber jumper connector
Optical patch cord products cover FC, SC, LC and other standard products and customized products,
Optional single-mode and multi-mode fiber optic cables with simplex, duplex, and mini-duplex structure.
With low insertion loss, high return loss, high reliability and stability, it can bring customers a convenient, fast, and excellent optical connection.

Product Details
Low insertion loss, high return loss
Three end face grinding methods: PC, UPC, APC
Mechanical durability 500 times
Optical cable material meets OFNR, OFNP flame retardant grade
The type and length of optical fiber can be customized according to customer needs.
  • Product specifications
    Optical fiber connector type SC-UPC / FC-PC / SC-APC/ LC-PC /FC-APC
    Optical fiber Single mode Multimode
    Insertion loss (dB) Maximum value≤0.30 Maximum value≤0.30
    Return loss (dB) PC≥45，UPC≥50，APC≥60 NA
    Product standard  Meet Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series standards and RoHS standards
    Working environment -25~+70°C -25~+70°C
    Environmental Protection RoHS compliant RoHS compliant

    Product information
    Connector A A-side grinding method Connector B B-side grinding method Fiber type Optical cable type length
    FC PC FC PC G652D 2.0mm 1 meter
    SC UPC SC UPC G657A2 3.0mm 5 meter
    LC PC LC PC custom made custom made 10 meter
    FC APC FC APC custom made custom made 20 meter
    SC APC SC APC custom made custom made 30 meter
    Various lengths of 1-150 meters can be customized
