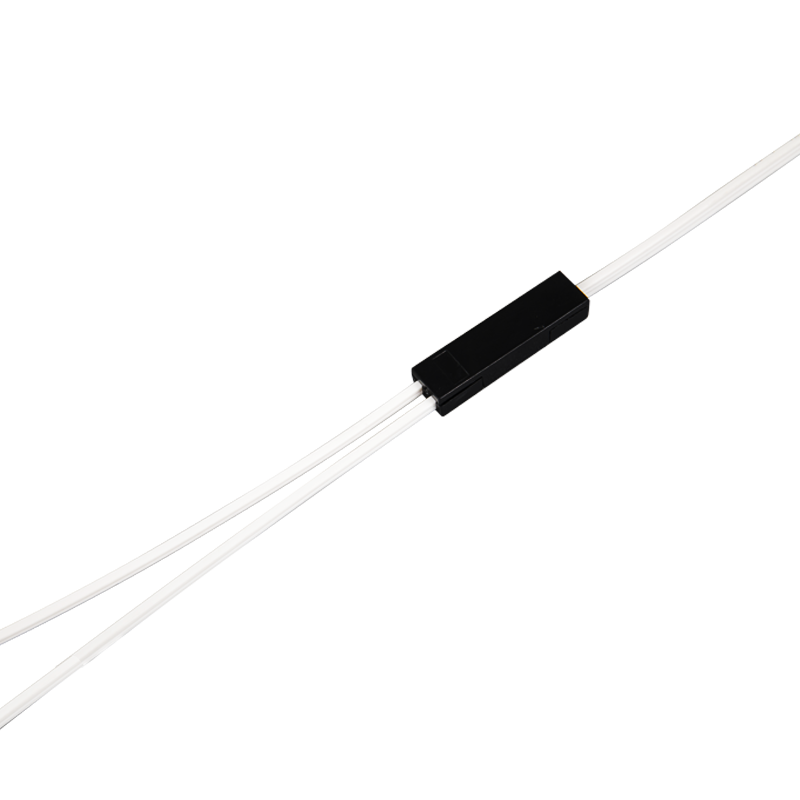

Indoor dual-core branched optical cable

Indoor fiber optic cable prefabricated end
The prefabricated end of the indoor cable is composed of two-unit butterfly cable, FC, SC optical fiber connectors, single-ended or double-ended.
It has high return loss, low insertion loss, high reliability and stability.

Product Details
Factory production, the fiber core is milled in the factory, with good stability and excellent optical performance
Has good mechanical properties, good tensile, anti-disturbance, and anti-side pressure performance
Convenient stripping, easy to lay, easy to pipe and deploy in the building
The optical cable has a small diameter and light weight, which is more beautiful when used indoors
The types and lengths of connectors, optical fibers, and optical cables can be customized according to needs, and they are packaged and shipped separately for on-site use.
  • Product specifications
    Optical fiber connector type SC-UPC / FC-PC / SC-APC
    Optical fiber Single mode Multimode
    Insertion loss (dB) Maximum value≤0.30 Maximum value≤0.30
    Return loss (dB) PC≥45,UPC≥50,APC≥60 NA
    Product standard  Meet Telcodia GR-326-CORE Issue 4, IEC 61754 series, YD/T 1272 series standards and RoHS standards
    Working environment -25~+70°C -25~+70°C
    Environmental Protection RoHS compliant RoHS compliant

    Product information
    Connector A A-side grinding method Connector B B-side grinding method Fiber type Optical cable type length
    FC PC FC PC G652D 2.0*3.0mm
    2.0*5.0mm
    1 meter
    SC UPC SC UPC G657A2 custom made 5 meter
    -- APC -- APC custom made -- 10 meter
    -- -- -- -- -- -- 20 meter
    Various lengths of 1-500 meters can be customized
